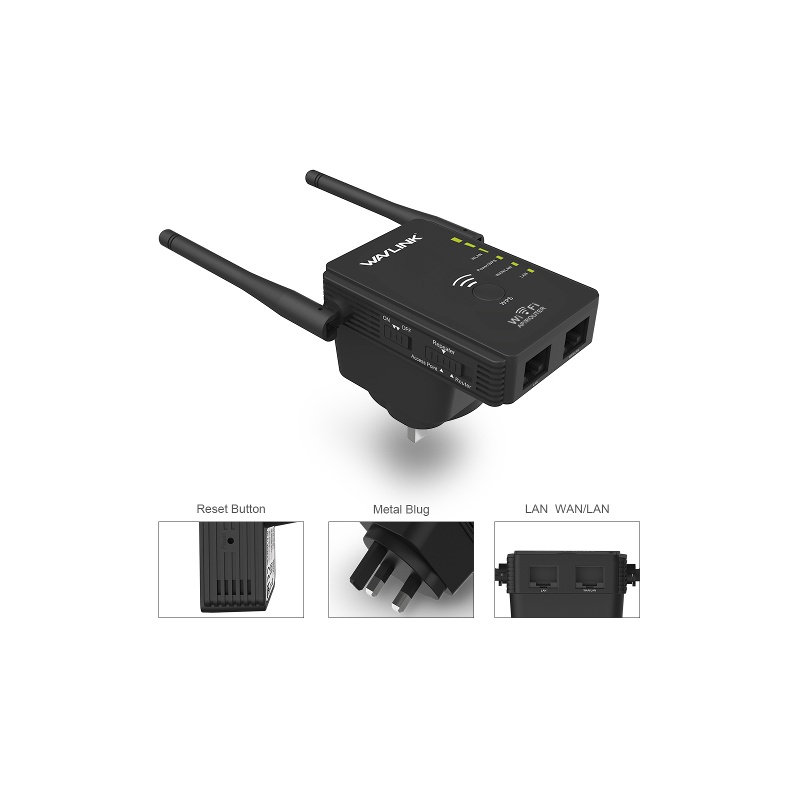

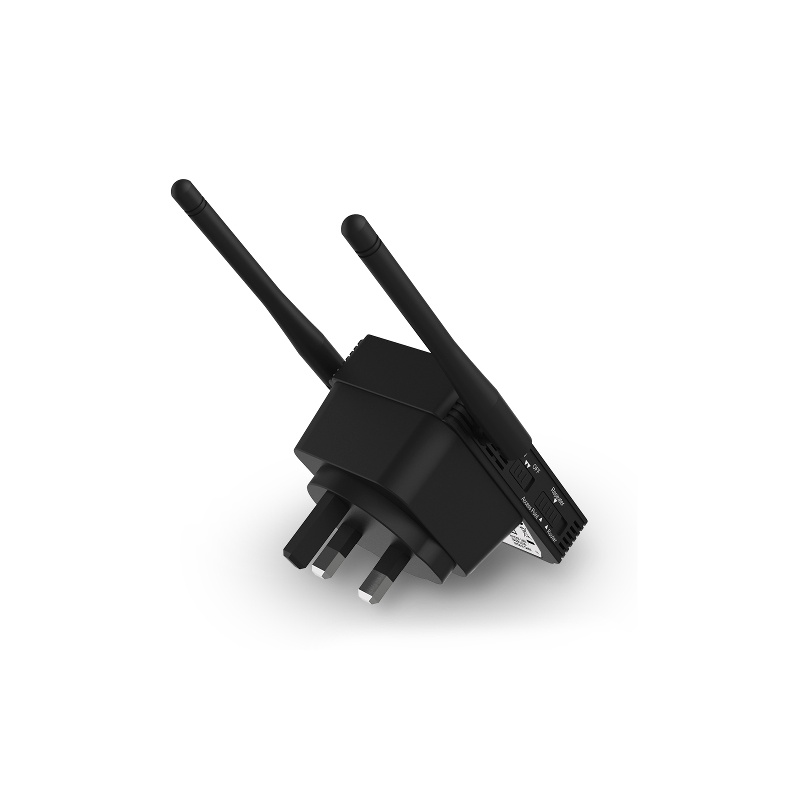

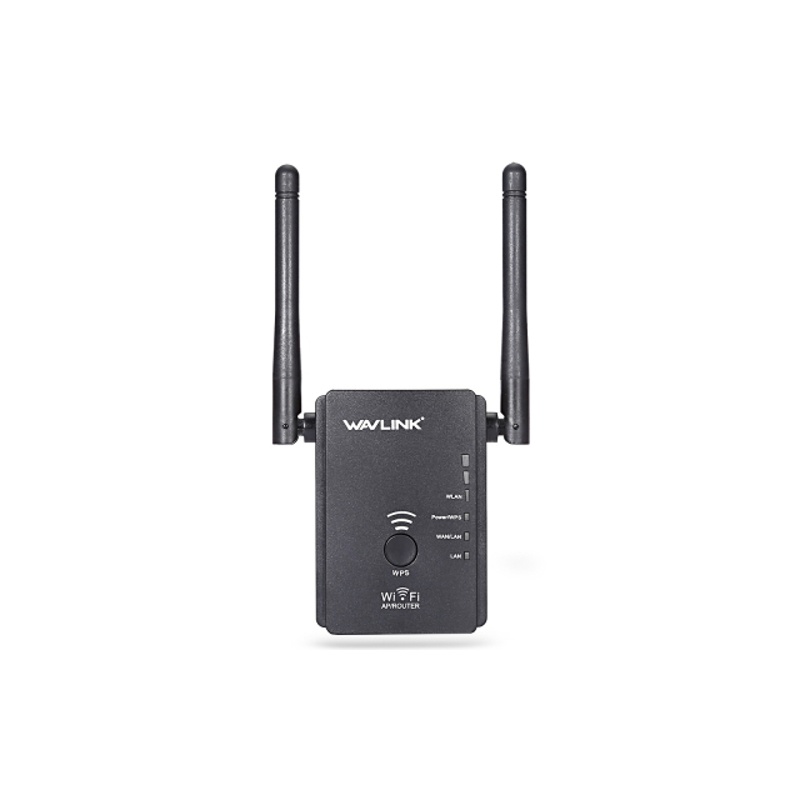

AERIAL S2 N300 Wireless AP Range Extender/Router

AERIAL S2 – N300 Wireless AP/Range Extender/Router

Complies with IEEE 802.11 b/g/n standards
Wireless speed up to 300Mbps
2 x Antennas provide even better wireless performance
Support WPA-PSK/ WPA2-PSK encryption
Provides one 10/100Mbps Auto-Negotiation Ethernet LAN port
Provides one 10/100Mbps Auto-Negotiation Ethernet WAN/LAN port
Easy wireless security encryption by one push on the WPS button
Designed with 3 x Wi-Fi Signal strength LED
Features a convenient Mode Selector, enabling you switch to AP, Repeater, Router
Features a convenient Power Switch, enabling you to switch ON/OFF
Compact, wall plug design for convenient placement

TECHNICAL SPECIFICATIONS

Model WN578R2

Ports 1 x 10/100Mbps WAN/LAN Port

        1 x 10/100Mbps LAN Port

Button  1 x Reset

           1 x WPS

           1 x Mode Switch

           1 x Power On/Off

LED 1 x LAN

      1 x WAN/LAN

      1 x Power

      3 x WLAN signal strength

Flash 16Mb

SDRAM 64Mb

Power Consumption 3.5W

Rated Voltage / Frequency 100-240 Va.c. 50/60Hz

DIMENSIONS

Unit Dimensions 75mm x 53mm x 41mm ( L x W x H )

WIRELESS

Wireless Standards IEEE 802.11b/g/n

Speed  11n: Up to 300Mbps

          11g: Up to 54Mbps

          11b: Up to 11Mbps

Frequency Band 2.4GHz

Wireless Security WPA-PSK/ WPA2-PSK encryption

Antenna 2 x 3dBi Omni Directional Antennas

PACKAGE

In The Box 1 x Wi-Fi AP/Range Extender/Router

                 1 x RJ-45 Ethernet Cable

                 1 x Quick Guide
