Network Video Recorder - NVR - Hi3536D, 32 Channels, Video compression: H.265/H.264, Support 2 * 6T HDD

Technical Specification:

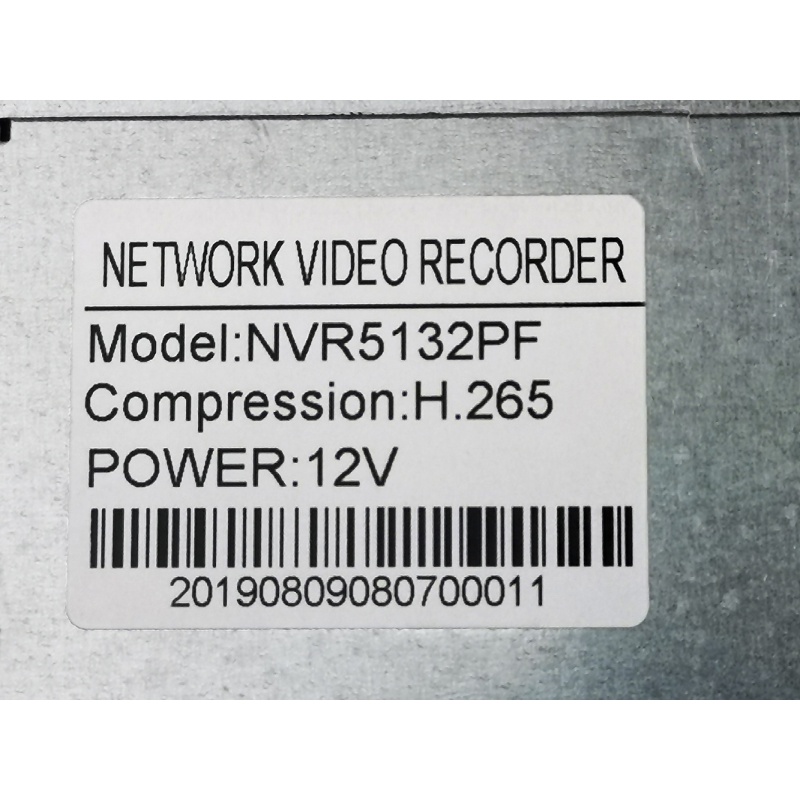

Model: 32CH NVR H.265

System:
* Main processor Hi3536C
* Operating System Embedded Linux
* Simultaneous multi-channel real-time recording, playback, network operation, USB
* System Resources: backup

Operator interface:
* 16-bit true color graphic menu operation interface, support mouse operation
* Preview: 1/4/8/16/24/32

Video:
* Video input (IP): 24*4M/32*2M/16*1080P
* Video standards: PAL(625TVL,50f/s);NTSC(525TVL,60f/s)
* Video compression: H.265/H.264
* Display quality: Max:4K
* Playback quality: 5M/4M/1080P
* Decode: 4*5M/6*1080P
* Motion detection: Depend on camera

Audio:
* Audio compression G.711A
* intercom Support

Record & playback:
* Recording mode: Manual>Alarm>Video Detection>Continuous
* Local Playback: 4*5M/16*1080P
* Search mode: search by Time/calendar/event/channel

Storage:
* Record Storage HDD 、network
* Backup mode Network backup, USB hard disk, USB burner, SATA burner

Other:

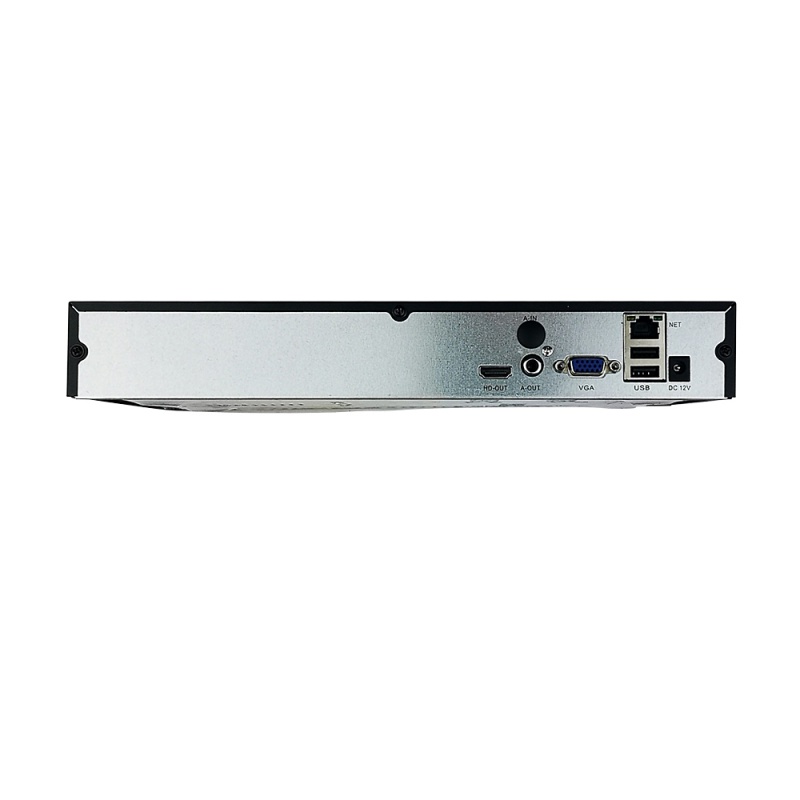

* Video output 1ch HDMI ,1ch VGA output
* Network interface 1*RJ45 10M/100M /1000MAdaptive Ethernet port
* USB interface 1*USB2.0 port,1*USB3.0 port(Reserved 2 pre interface)
* Hard disk 2*SATA(Up to 6TB for each disk) NOT INCLUDED
* PTZ control Control PTZ device by network
* ONVIF Support

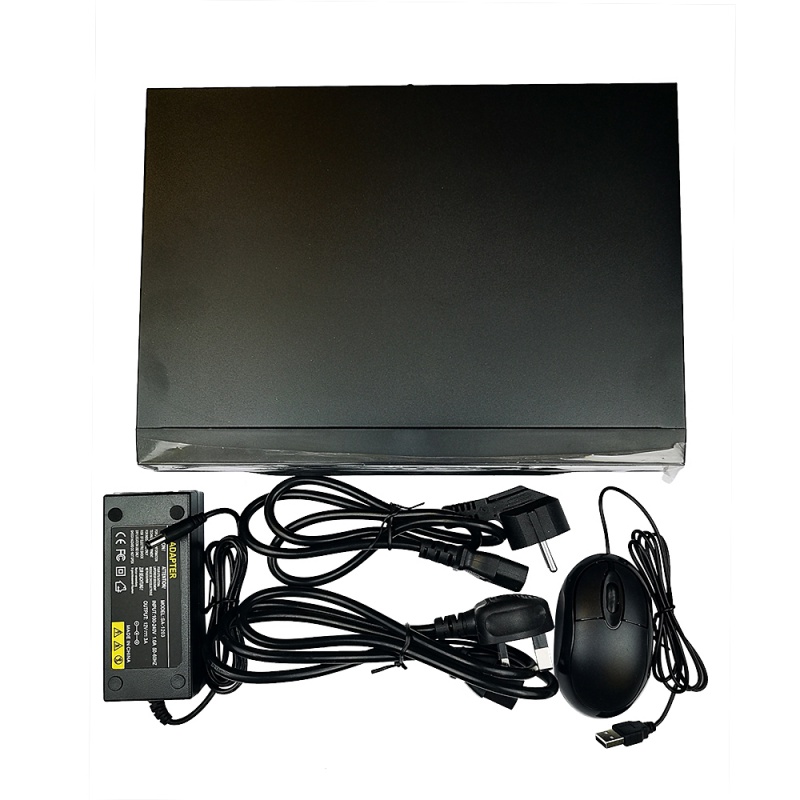

* Power supply 12V-3A
