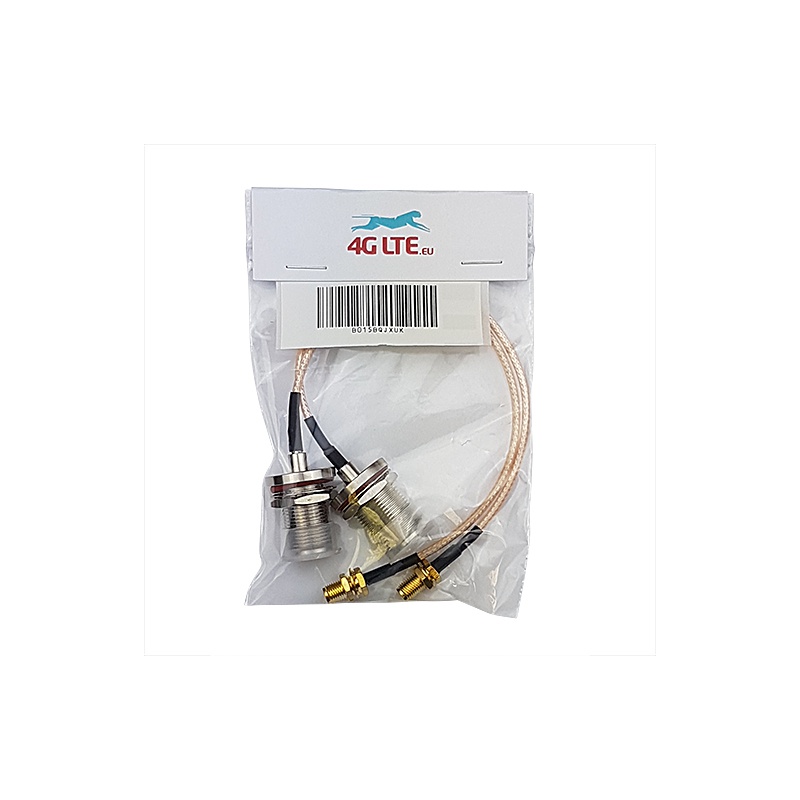

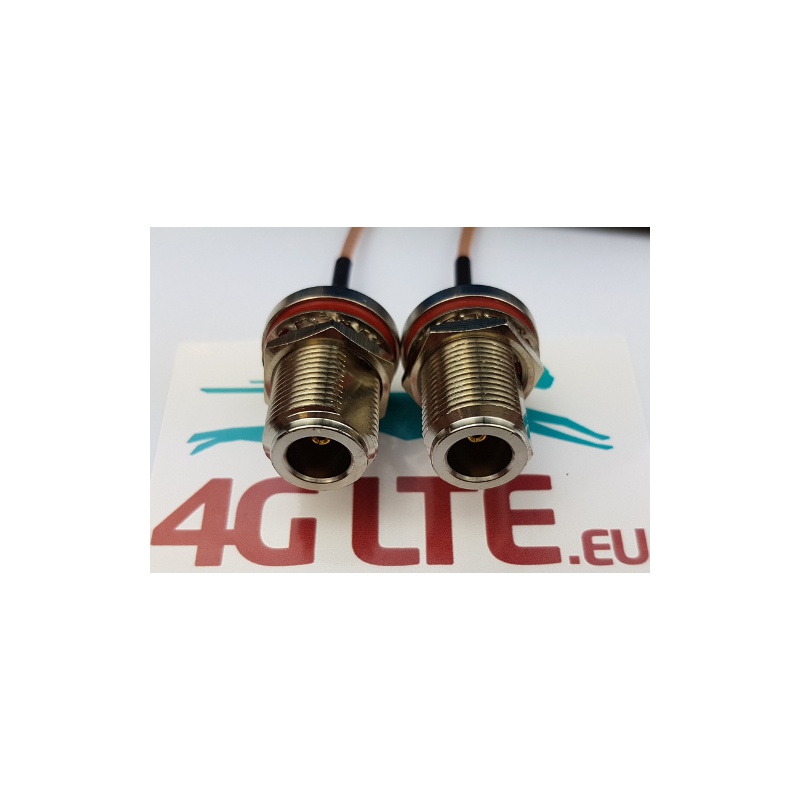

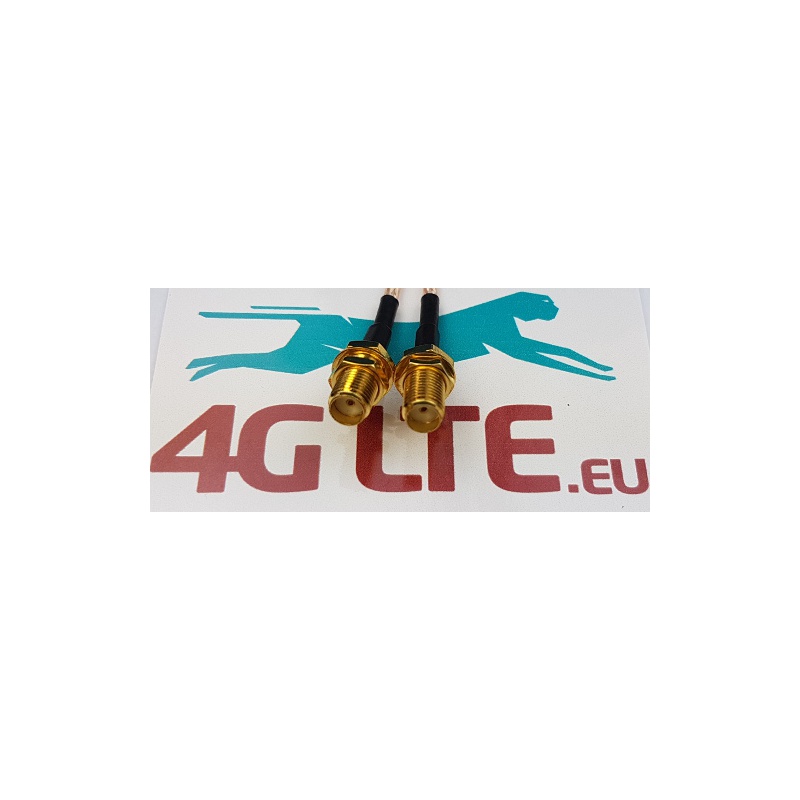

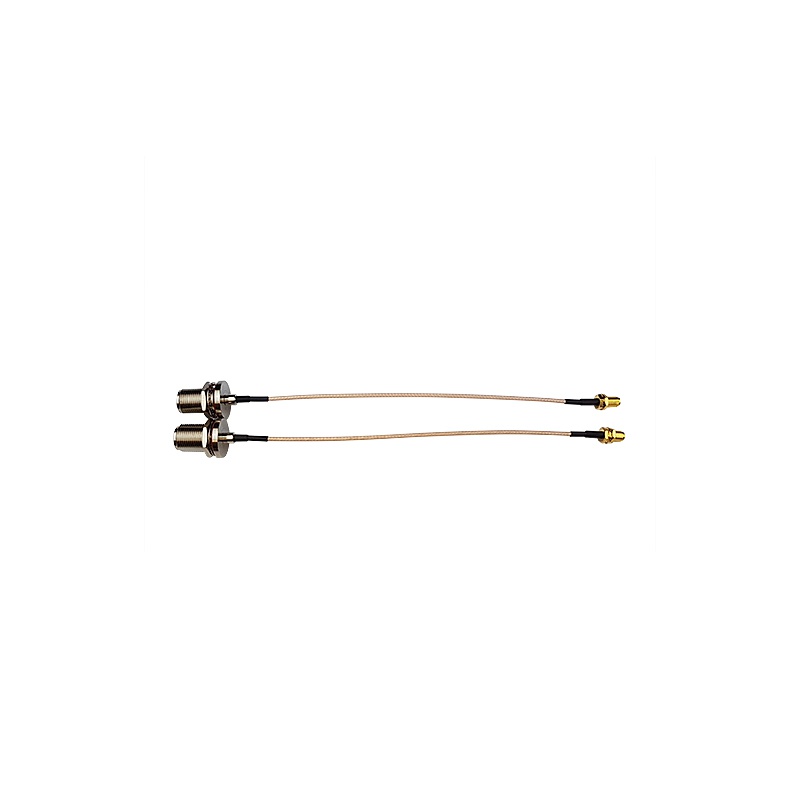

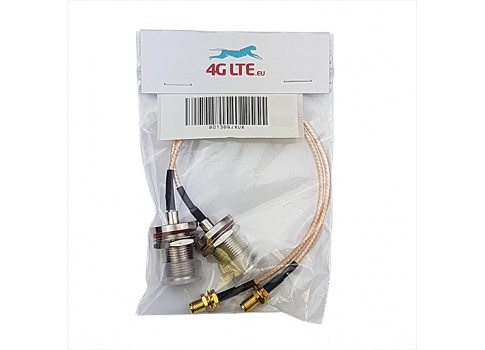

A pair of cable Assembly N Female to SMA Female

Electrical Specifications
Model 4G-N F-SMA F
Frequency Range DC to 6GHz
Connector N Female to SMA Female
Cable length 15cm
Impedance 50ohms
Temperature -40℃ to +85℃
Rated Voltage AC 60V
Contact Resistance 20m ohm max-signal and ground
Withstand Voltage AC 200V
Insulation Resistance 500M ohm minimum/DC 100V
VSWR ＜1.5:1
