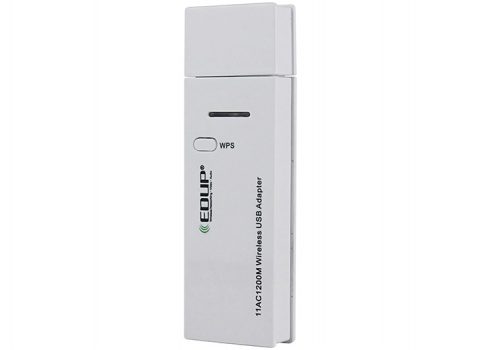

AC DUAL-BAND WIFI USB ADAPTER

Features:

1.Support USB3.0
2.Support 20MHz/40MHz/80MHz frequency
3.5G compatible with IEEE 802.11ac and IEEE 802.11a standard
4.2.4G compatible with IEEE 802.11n, IEEE 802.11g, IEEE 802.11g standard
5.Detect the network and change transmit speed automatically
6.Support WPA/WPA2/WPA-WPA2/802.1x and 64/128 bit WEP encryption
7.Support WPS 2.0
8.Internal Omni-directional Antenna
9.Support 2.4G and 5G dual band
10.Support Wi-Fi Direct
11.Support Multiple BSSID
12.Support QoS-WMM, WMM-PS
13.Support WPS: PIN, PBC
14.Support Infrastructure mode, Ad-Hoc mode and Soft AP three modes
15.Support Cisco CCX
16.Low consumption management
17.Supported Window 2000/XP/Vista/Win7/Win8/Win8.1/Win10; Mac OS10.9~10.11; Linux v3.0.0.1

Specification:

Wireless Standards  IEEE 802.11n
                              IEEE 802.11g

                              IEEE 802.11b

                              IEEE 802.11ac

                              IEEE 802.11a

Transmit Speed       802.11b: 1/2/5.5/11Mbps
                             802.11g: 6/9/12/18/24/36/48/54Mbps

                             802.11n: up to 300Mbps

                             802.11n: up to 867Mbps

Frequency Range    2.412~2.4835 GHz
                             5.180~5.320GHz

                             5.500~5.700GHz

                             5.745~5.825GHz

Work Channel         1 ~ 14 (2.4G)
                             36 ~ 165 (5G)

Chipset                  MTK7612
Work Power           18dBm (Typical)
Sensitivity             11n: -68dBm@130M; -68dBm@108M
                            11g: -69dBm@54M

                            11b: -85dBm@11M

                            11ac: -59dBm@867M

Wireless Security   WPA/WPA2/WPA-WPA2/802.1x
                            64/128 bit WEP

                           WPS (PIN, PBC)

Support Operation System Window 2000/XP/Vista/Win7/Win8/Win8.1/Win10; Mac OS10.9~10.11; Linux v3.0.0.1
Host Interface      USB 3.0
LED(BLUE)           Link/Act
Antenna Type       Internal Omni-directional Antenna
Size(cm)              9.1×3×1.2
Environment        Operating Temperature: 0℃~45℃
                          Storage Temperature: -20℃~75℃

                          Operating Humidity: 10% ~ 90% RH (Non Condensing)

                          Storage Humidity: 5% ~ 95% RH (Non Condensing)
