Manufacturer: EDUP
Code: EP-AC1619
In stock: 0 |

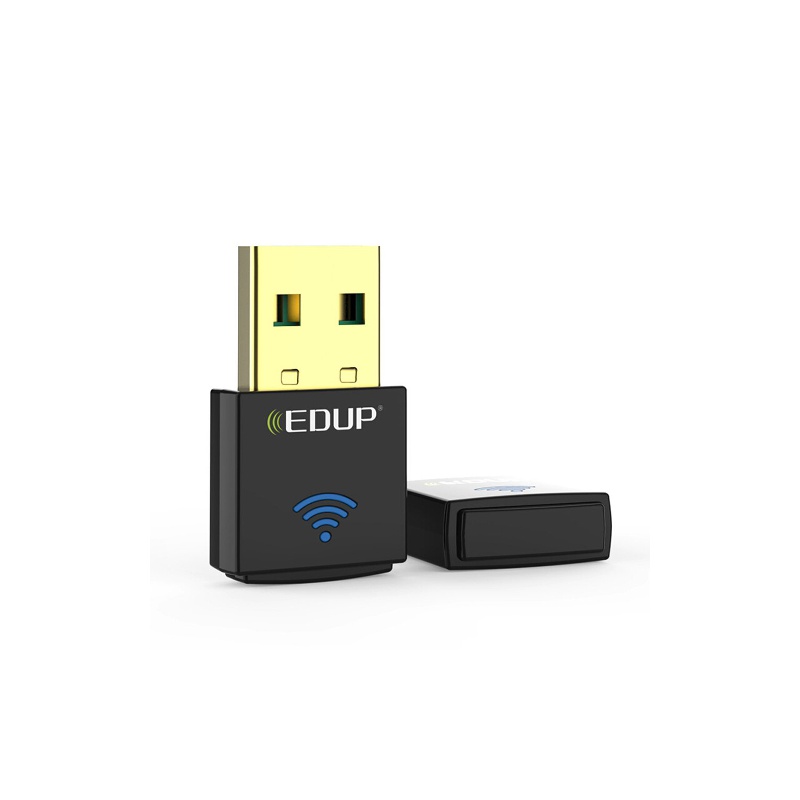

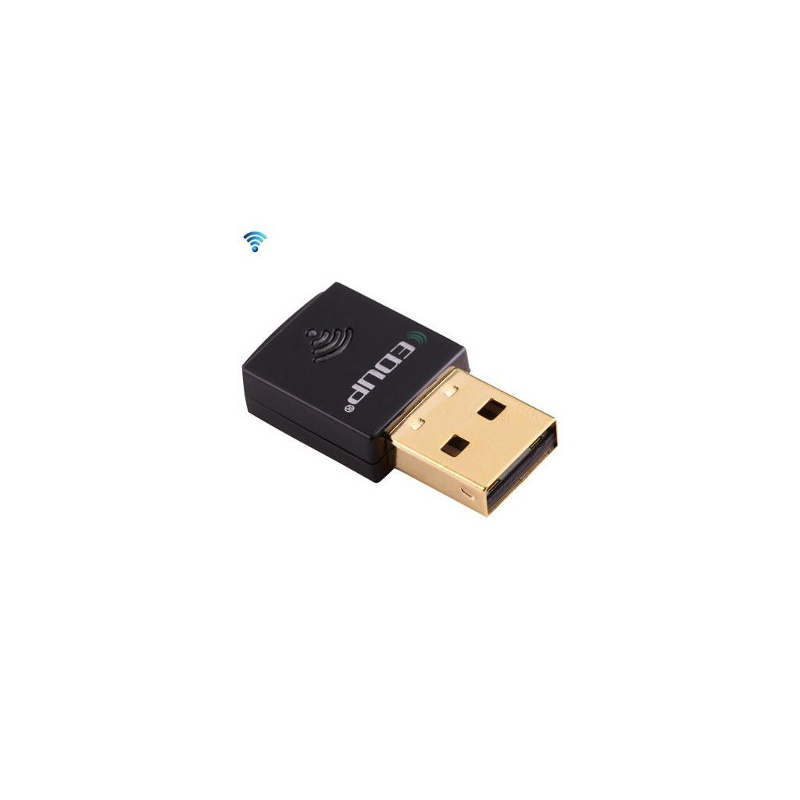

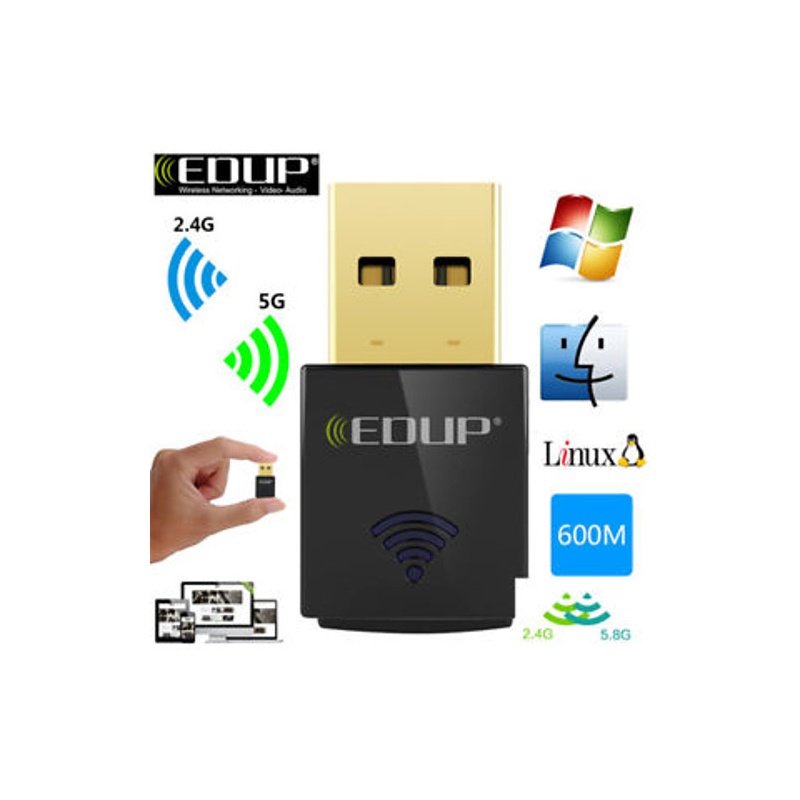

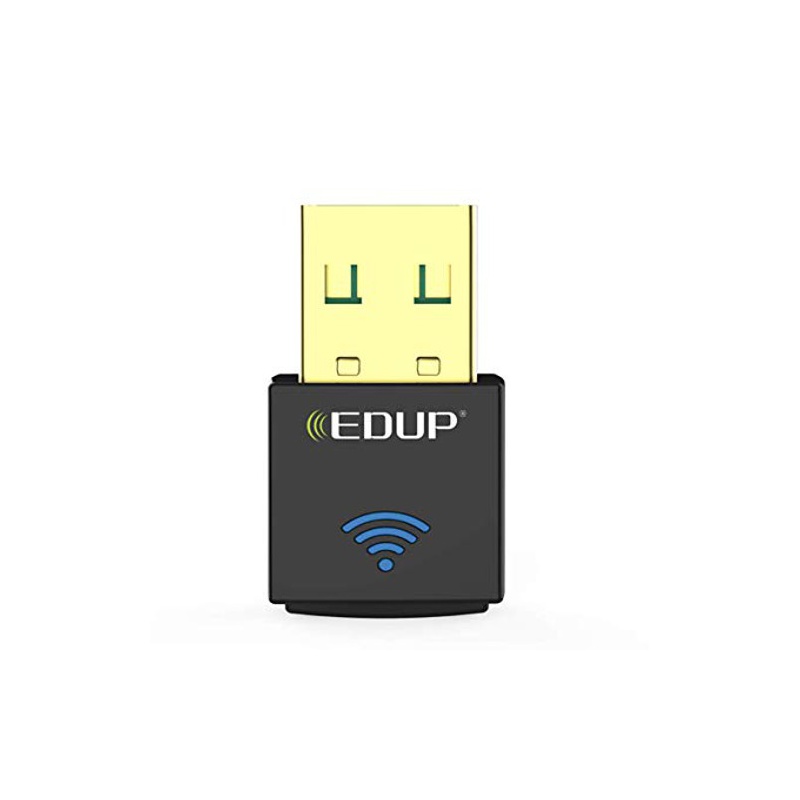

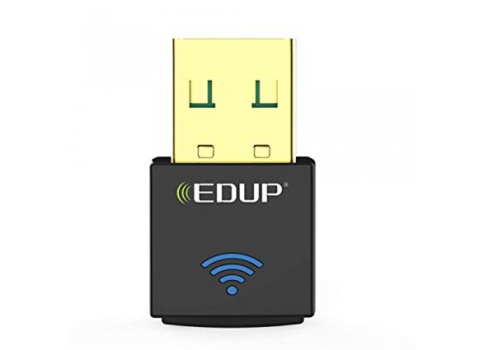

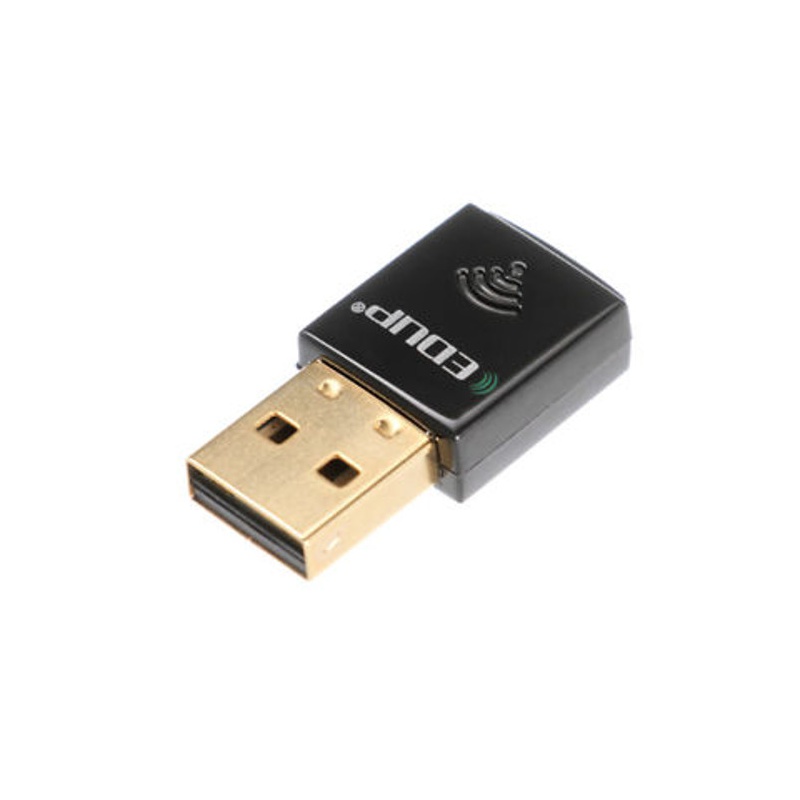

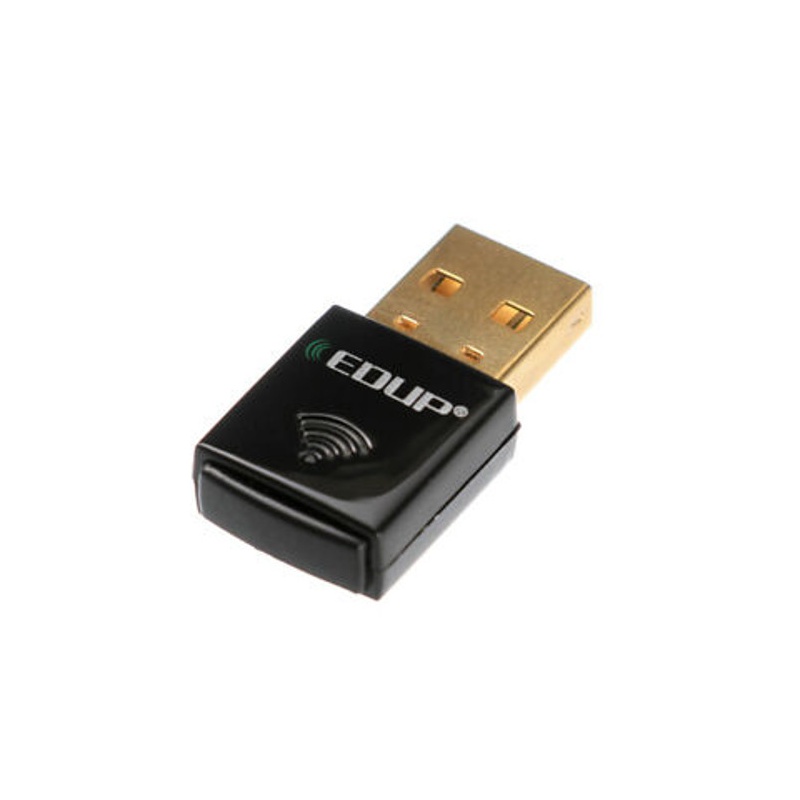

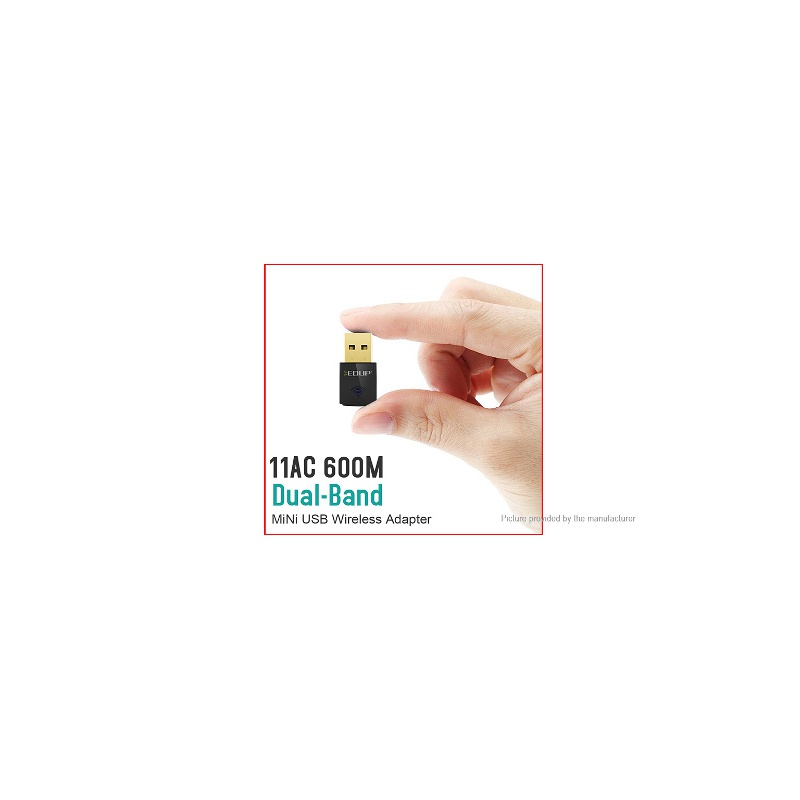

HD Video and Gaming Ready Stream HD video and online gaming simultaneously throughout your home.
Performance Investment Protection Compatibility with Wireless-A (802.11a), Wireless-B (802.11b), Wireless-G (802.11g), Wireless-N (802.11n) and Wireless-AC (802.11ac) Wi-Fi Standards.
Wi-Fi Security Supports up to 128-bit encryption (WEP, WPA and WPA2).
Easy Setup with Router or Access Point Support WPS (Wi-Fi Protected Setup) button for easy connection with wireless router or wireless access point.
Easy Computer Setup and Compatibility Easy to use CD setup wizard and compatible with Microsoft Windows 10/8.1/8/7, Vista SP1/SP2 and XP SP3.
Features:
Standard: IEEE 802.11 b/g/n 2.4GHz, IEEE 802.11 a/n/ac 5.0GHz
2. Wi-Fi Band: Dual band 2.4 or 5GHz
3. Wi-Fi Performance: AC600Mbps (2.4G 150M / 5.8G 433M)
4. Hardware version: version 1.0
5. Support Systems: Windows XP / VISTA / WIN 7 / 8.1 /10 ,Mac OS X 10.6-10.11.5(El Captain)/Linux
6. Antenna: integrated 2dBi
7. Support QoS-WMM, WMM-PS
8. Support WPS: PIN, PBC
9. Support Infrastructure mode, Ad-Hoc mode and Soft AP three modes
Specification:
Wireless Standards IEEE 802.11n IEEE 802.11g
IEEE 802.11b
IEEE 802.11ac
IEEE 802.11a
Transmit Speed 802.11b: 1/2/5.5/11Mbps
802.11g: 6/9/12/18/24/36/48/54Mbps
802.11n: up to 150Mbps
802.11n: up to 433Mbps
Frequency Range 2.412~2.4835 GHz
5.180~5.320GHz
5.500~5.700GHz
5.745~5.825GHz
Work Channel 1 ~ 14 (2.4G)
36 ~ 165 (5G)
Work Power 18dBm (Typical)
Sensitivity 11n: -68dBm@130M; -68dBm@108M
11g: -69dBm@54M
11b: -85dBm@11M
11ac: -59dBm@867M
Wireless Security WPA/WPA2/WPA-WPA2/802.1x
64/128 bit WEP
WPS (PIN, PBC)
Support Operation System winxp,winvista,win7;Win8/8.1/10 mac10.5~mac10.8;
Linux Driver for Kernel 2.6.18~2.6.38 and 3.0.2;Android 1.6~2.3 and 4.0
Chipset Realtek8811AU
Host Interface USB 2.0
LED(BLUE) Link/Act
Antenna Type Internal Omni-directional Antenna
Size(mm) 16mm×32mm×3.0mm
Environment Operating Temperature: 0℃~45℃
Storage Temperature: -20℃~75℃
Operating Humidity: 10% ~ 90% RH (Non Condensing)
Storage Humidity: 5% ~ 95% RH (Non Condensing)
