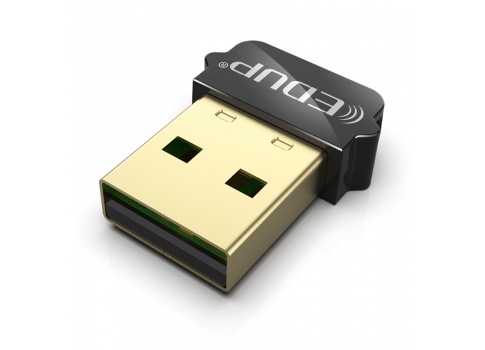

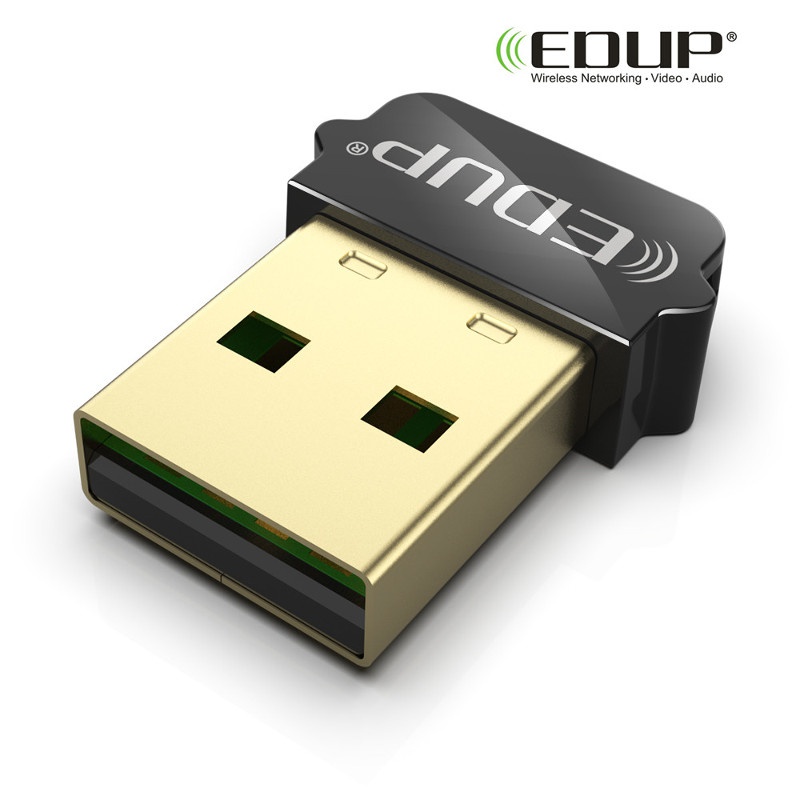

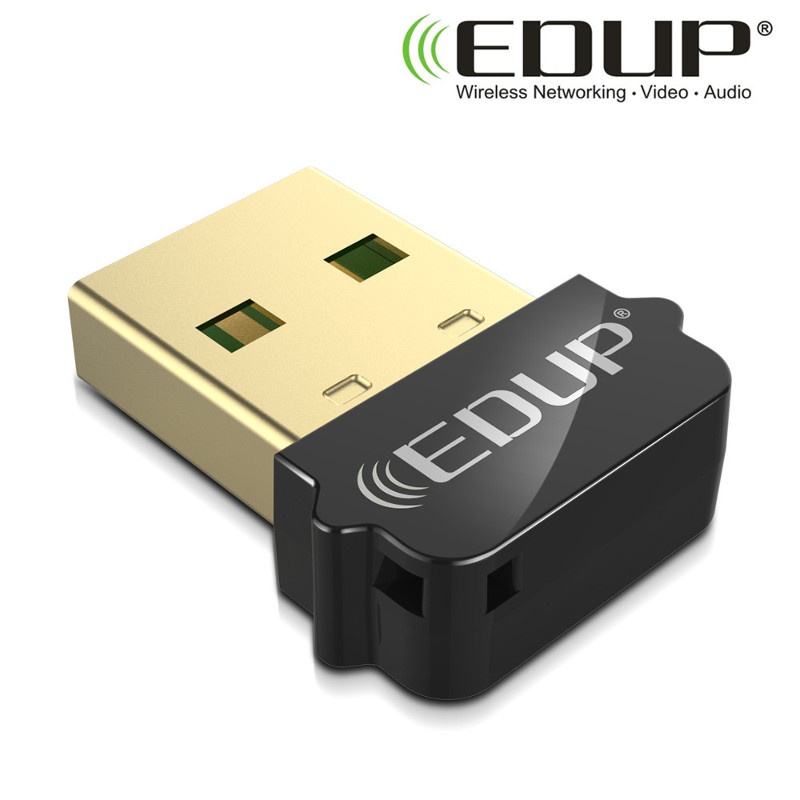

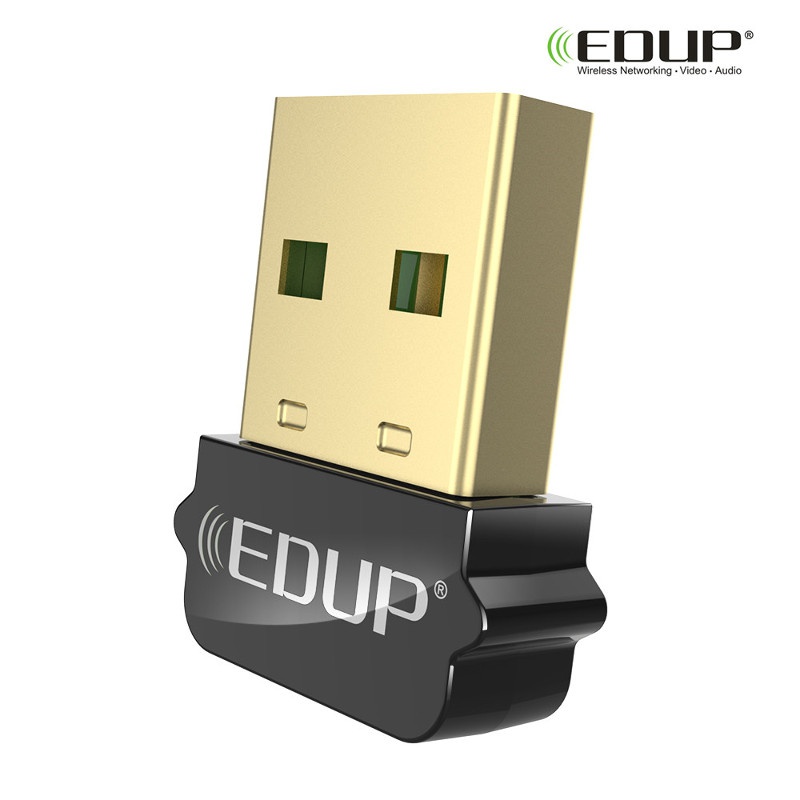

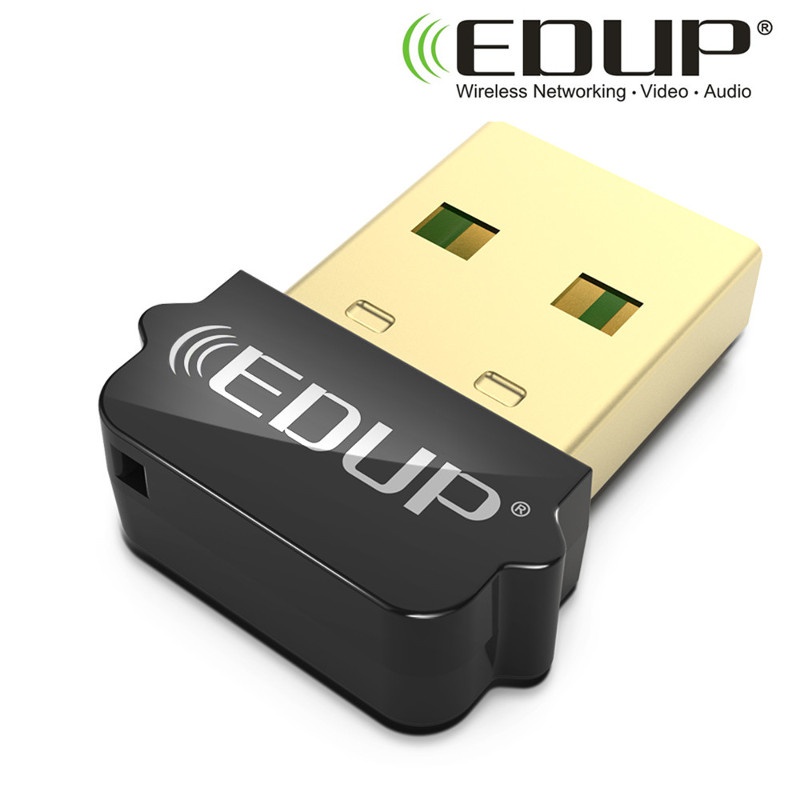

EDUP long range wifi adapter 650Mbps wifi receiver adapter

Product Description

Features

Support USB2.0

Support 20MHz/40MHz/80MHz frequency

5G compatible with IEEE 802.11ac and IEEE 802.11a standard

2.4G compatible with IEEE 802.11n, IEEE 802.11g, IEEE 802.11g standard

Detect the network and change transmit speed automatically

Support WPA/WPA2/WPA-WPA2/802.1x and 64/128 bit WEP encryption

Internal Omni-directional Antenna

Support 2.4G and 5G dual band

Support Wi-Fi Direct

Support Multiple BSSID

Support QoS-WMM, WMM-PS

Support WPS: PIN, PBC

Support Infrastructure mode, Ad-Hoc mode and Soft AP three modes

Support Cisco CCX

Low consumption management

Supported OS: Window 2000/XP/Vista/Win7/Win8/Win8.1/Win10 Mac OS/Linux

Specifications

Wireless Standards

      IEEE 802.11n IEEE 802.11g

      IEEE 802.11b

      IEEE 802.11ac

      IEEE 802.11a

Transmit Speed

      802.11b: 1/2/5.5/11Mbps

     802.11g: 6/9/12/18/24/36/48/54Mbps

     802.11n: up to 200Mbps

     802.11n: up to 433Mbps

Frequency Range

     2.412~2.4835 GHz

     5.180~5.320GHz

     5.500~5.700GHz

     5.745~5.825GHz

Work Channel

     1 ~ 14 (2.4G)

     36 ~ 165 (5G)

Work Power

      18dBm (Typical)

Sensitivity

     11n: -68dBm@130M; -68dBm@108M

      11g: -69dBm@54M

      11b: -85dBm@11M

      11ac: -59dBm@867M

Wireless Security

     WPA/WPA2/WPA-WPA2/802.1x

     64/128 bit WEP

     WPS (PIN, PBC)

Support Operation System

      winxp,winvista,win7;Win8/8.1/10 mac10.5~mac10.8;

      Linux Driver for Kernel 2.6.18~2.6.38 and 3.0.2;Android 1.6~2.3 and 4.0

Chipset

     Realtek8811CU

Host Interface

      USB 2.0

LED(BLUE)

     Link/Act

Antenna Type

      Internal Omni-directional Antenna

Size(cm)

      16mm×32mm×3.0mm

Environment

       Operating Temperature: 0℃~45℃

       Storage Temperature: -20℃~75℃

       Operating Humidity: 10% ~ 90% RH (Non Condensing)

       Storage Humidity: 5% ~ 95% RH (Non Condensing)
