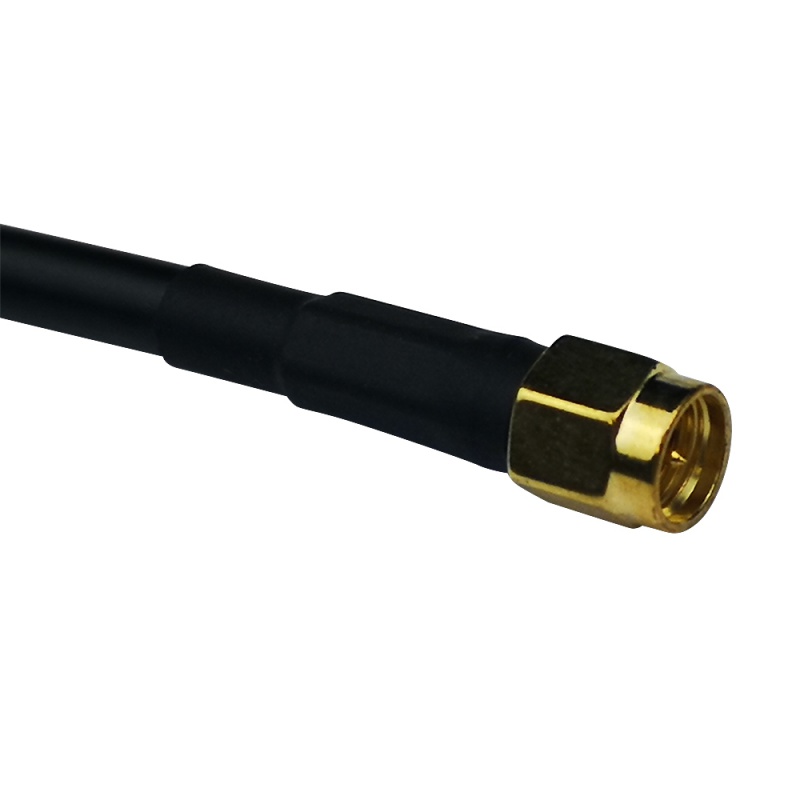

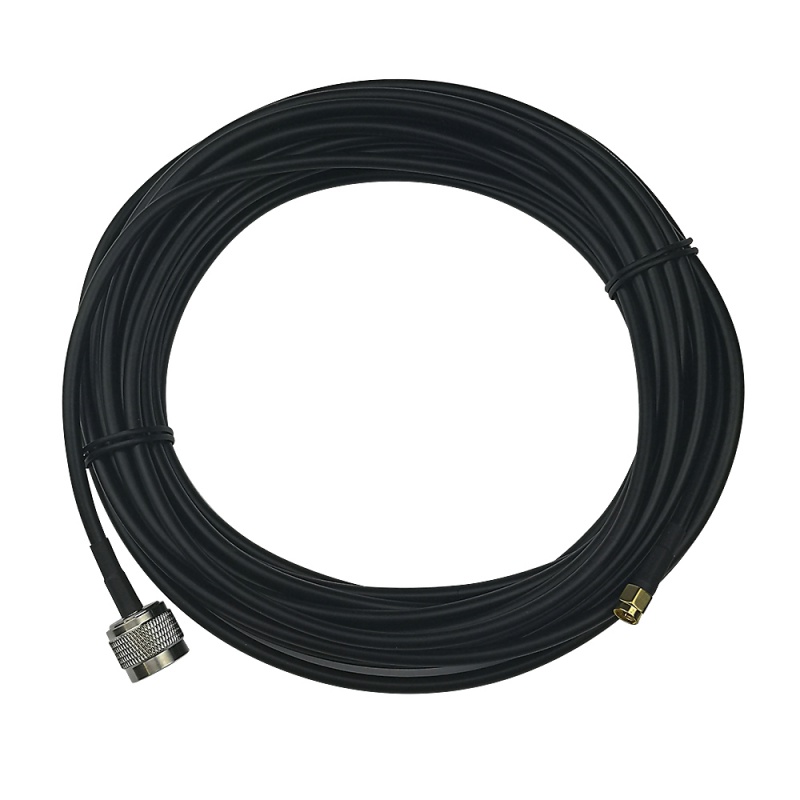

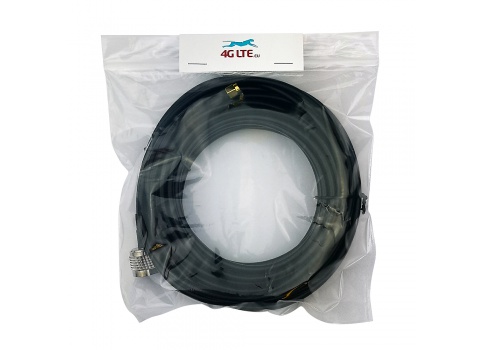

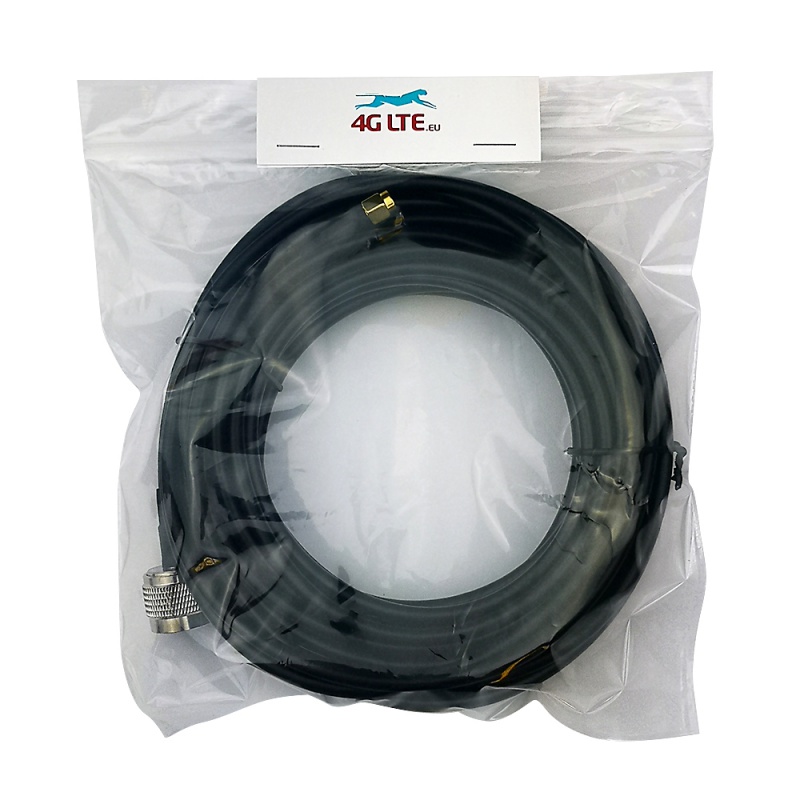

Cable Assembly N Male to SMA Male 10M

Electrical Specifications

Model 4G-N M-SMA M-10M
Frequency Range DC to 6GHz

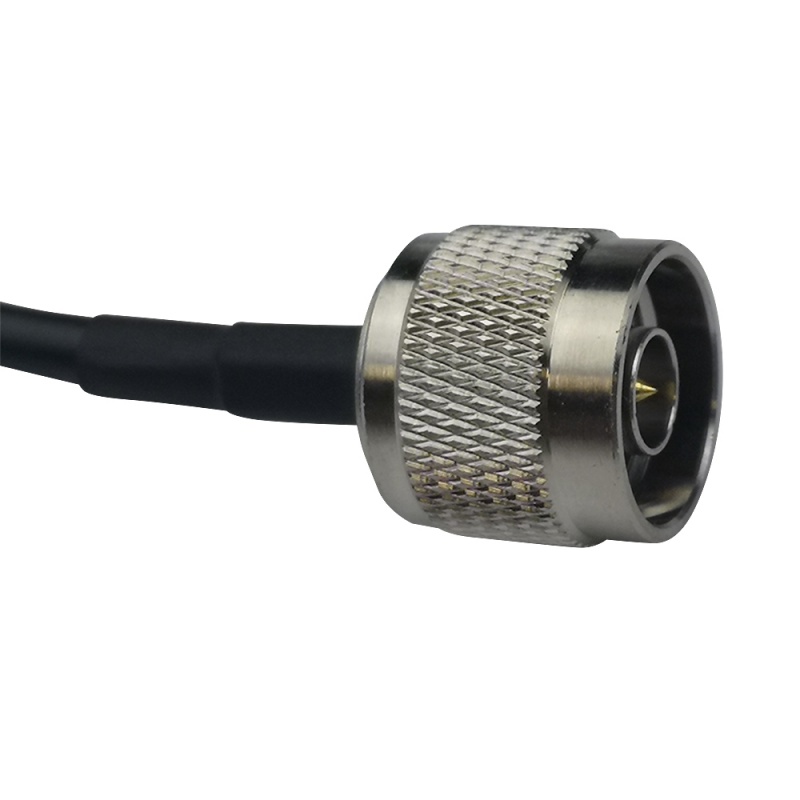

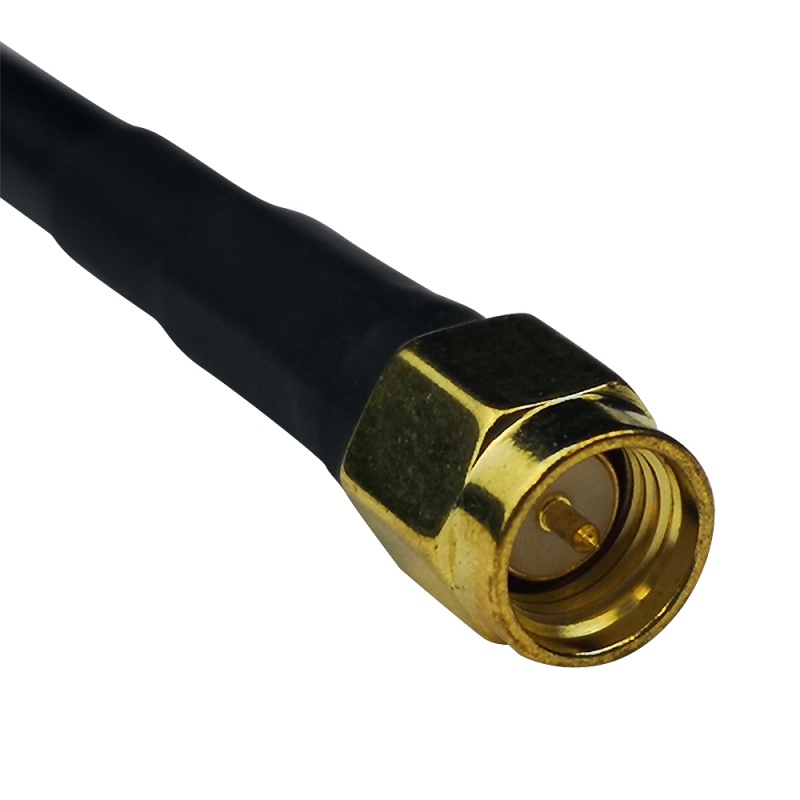

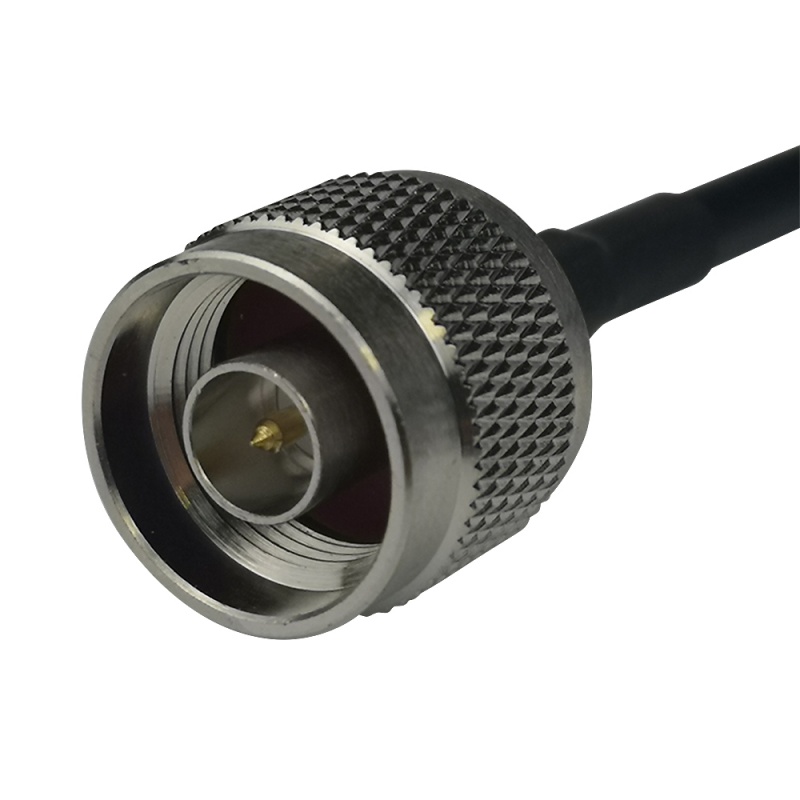

Connector N Male to SMA Male

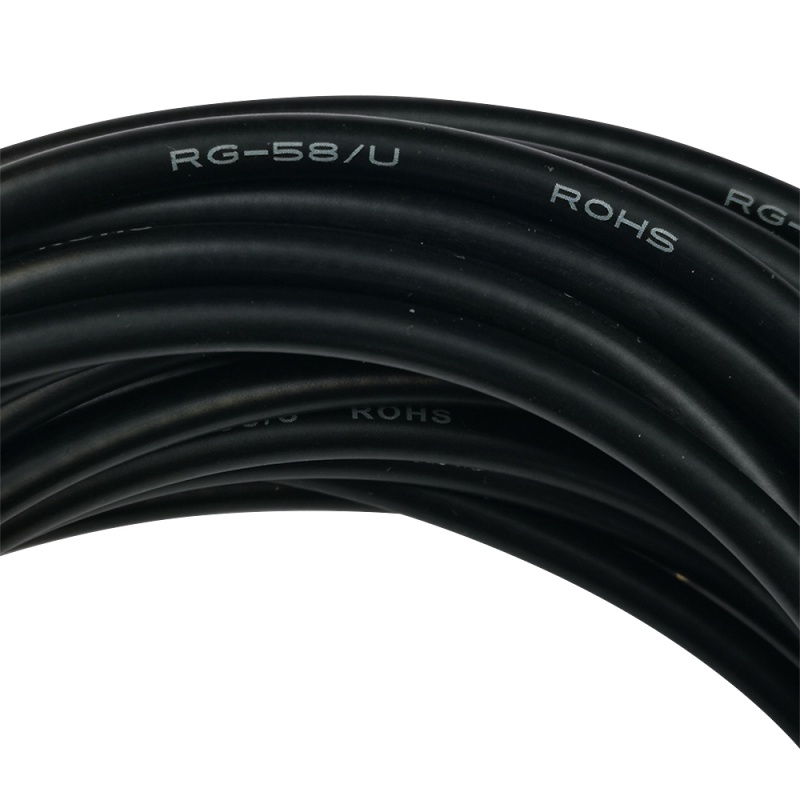

Cable type RG58U
Package Dimensions: 16x16x4cm

Cable length 10M

Impedance 50ohms
Temperature -40℃ to +85℃
Rated Voltage AC 60V
Contact Resistance 20m ohm max-signal and ground
Withstand Voltage AC 200V
Insulation Resistance 500M ohm minimum/DC 100V
VSWR ＜1.5:1

Product weight: 350g
