Manufacturer: EDUP
Code: EP-MS1581
In stock: 0 |
Features
MIMO technology improves data throughput and range over existing 802.11b/g productsAdd high-speed Wireless-N (draft 802.11n) Internet access to any USB enabled computerDownload music & movies, surf the internet and e-mail up to 5 times faster than previous generation wireless networks (Wireless 802.11g)Offers greater coverage than Wireless-G networks for internet access throughout your home or officeWorks with older Wireless-G and Wireless-B networksOperating distance of up to 300 feet indoor, and up to 900 feet in open spaceData transfer rate of up to 300MbpsSupports USB 2.0 interface, backward compatible to USB 1.1 and 1.2Enhanced WEP and WPA wireless security for protected Internet access64-bit / 128-bit WEP (Wired Equivalent Privacy), TKIP, AES 2.400GHz ISMFrequency Band Modulation Method: QPSK / BPSK / 16-QAM / 64-QAMSupports Ad Hoc and Infrastructure modesSupports IEEE 802.11e standard
Specification:
Wireless Standards IEEE 802.11n (draft)
IEEE 802.11g
IEEE 802.11b
Host Interface High speed USB2.0/1.1 interface
Wireless Signal Rates with Automatic Fallback 802.11n: up to 300Mbps(Dynamic)
802.11g: up to 54Mbps(Dynamic)
802.11b: up to 11Mbps(Dynamic)
Frequency Range 2.4GHz-2.4835GHz
Wireless Transmit Power 18dBm(EIRP)
Modulation Type DBPSK,DQPSK,CCK,OFDM
Receiver Sensitivity 270M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@10% PER
Work Mode Ad-Hoc Infrastructure, soft AP
Wireless Security WPS, 64/128big WEP, WPA/WPAS, WPA-PSK/WPA2-PSK(TKIP/AES)
Support Operation System Windows XP/Win7/8/8.1/10/Linux/Mac OS
Interface USB2.0 Hi-Speed connector

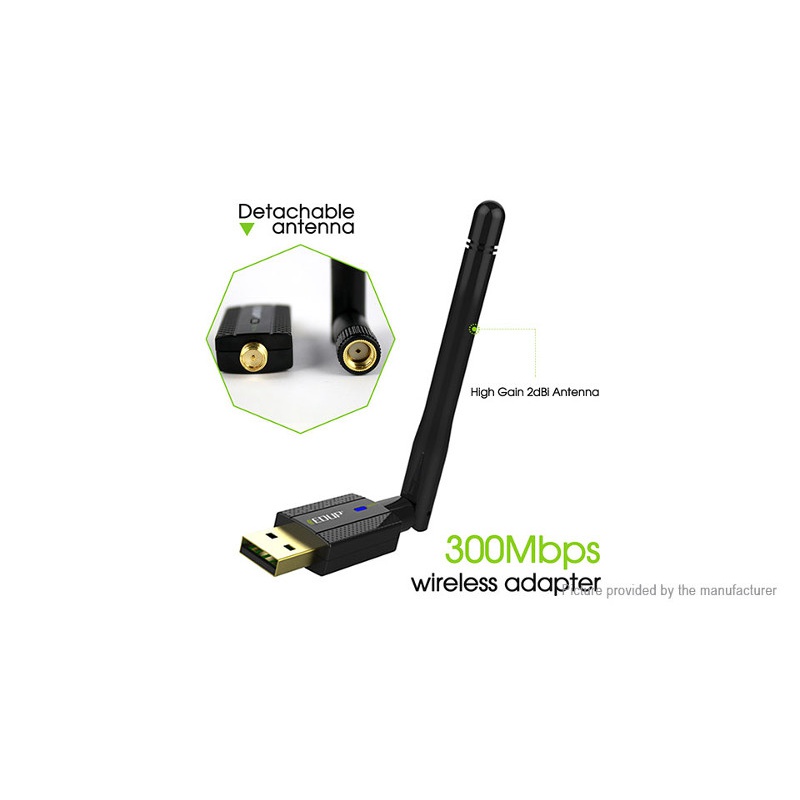

Antenna Type Removable 2dbi antenna
Environment Operating Temperature: 0oC to 40oC
Storage Temperature: -40oC to 70oC
Operating Humidity: 10% ~ 90% (Non Condensing)
Storage Humidity: 5% ~ 95% (Non Condensing)
Compliant FCC (USA)
CE Mark (Europe)
RoHS Compliant
Wi-Fi Compliant
