Manufacturer: TopBand

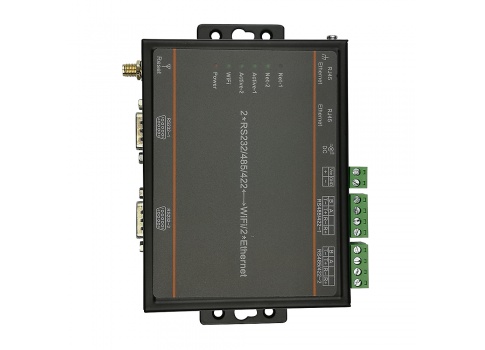

Code: SCV-202
| In stock: 0 |
Wireless communication technology especially the rise of Ethernet and WIFI technology provides new opportunities to industrial communication application .The industrial Wi-Fi serial server products developed by TOPBAND are designed for the specific needs of industrial users.By IEEE802.11 standard wireless technology.
| MIPS | |
| Basic Frequency | 320MHz |
| Flash | 4MB |
| SDRAM | 8MB |
| Operating System | eCos |
| Ethernet | |
| Interface Standard | 2 RJ45 |
| Rate | 10/100 Base-T Auto-Negotiation |
| Protection | 8KV Isolation |
| Network Protocol | IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP,BOOTP,AutoIP, ICMP,Web socket,Telnet,FTP,TFTP,uPNP,NTP,SNMP,Modbus TCP |
| Security Protocol | TLS v1.2 AES 128Bit DES3 |
| WIFI Standard | 802.11 b/g/n |
| Network Mode | STA/AP/STA+AP |
| Access Terminal Quantity in AP Mode | Max 32 |
| Transmit Power | 802.11b: +20dBm(Max.) 802.11g: +18dBm(Max.) 802.11n: +15dBm(Max.) |
| Receive Sensitivity | 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm |
| Wi-Fi Security | WEP/WPAPSK/WPA2PSK |
| Antenna Interface | External:3dBi antenna |
| Port Number | 2(RS232/RS485/RS422) |
| Interface Standard | RS232: DB9 RS485/RS422: 5.08mm connector |
| Data Bits | 8 |
| Stop Bit | 1,2 |
| Check Bit | None,Even,Odd |
| Baud Rate | TTL: 300 bps~230400bps |
| Flow Control | No Flow control Hardware RTS/CTS,DSR/DTR Software Xon/ Xoff flow control |
| Buffer | 4K |
| Configuration | Web,CLI,XML import,Telnet,IOTManagerPC Software |
| Virtual Serial | Windows, XP/Vista, 7, Server 2003/2008 |
| Size | 108mmx 146mm x 25mm |
| Operating Temp. | -45 ~ 85°C |
| Storage Temp. | -45 ~ 105°C,5 ~ 95% RH(No Condensation) |
| Input Voltage | 5~36VDC |
| Working Current | ~200mA |
| Power | <700mW |
| Certificate | FCC/CE/RoHS |
| Warranty | 2 years |
| Accessory | 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna |
