Ubiquiti Unifi UAP AC EDU 1300 Mbps AP/Hotspot/PA

Manufacturer: Ubiquiti

Our price:£ 240.00/pcs. tax incl.

Code: UAP-AC-EDUusd

In stock: 0

The EDU is unlike the rest of the range as it include a microphone and speaker in the outer ring, this is intended for public address's and other such announcements. This naturally tailors the UAP AC EDU towards Educational and public service venues.

The UniFi UAP EDU offers simultaneous support for the old gen' and new gen' wireless device by offering dual-band operation with 3x3 MIMO technology for each band proving legacy 2.4Ghz 802.11G/N to the new 802.11ac providing greater speed for compatible devices. It has a range of up to 125 m (400 ft) and two Gigabit Ethernet ports matching. During the initial few month Ubiquiti are due to release firmware upgrades allowing zero hand-off and wireless uplinking across the AC devices, band B licensing is also expected allowing these devices to operate with more available frequencies and power output.

The UAP AC EDU is also available in a 4 pack with no included POE injectors, click here for details

With no license costs and a free software controller Ubiquiti offers Unlimited Scalability to build your wireless networks as small or big as you need. Start with one, expand to thousands. An IOS and android application will be released in the near future.

After the UniFi Controller software is installed on a Linux, Mac or Windows computer ( also available in a separate hardware box ) the Ubiquiti UniFi Controller can be accessed through any device using a standard web browser. The Ubiquiti UniFi Controller allows the administrator to instantly provision thousands of UniFi Access Points, map out networks, quickly manage system traffic, and further provision individual Ubiquiti UniFi devices.

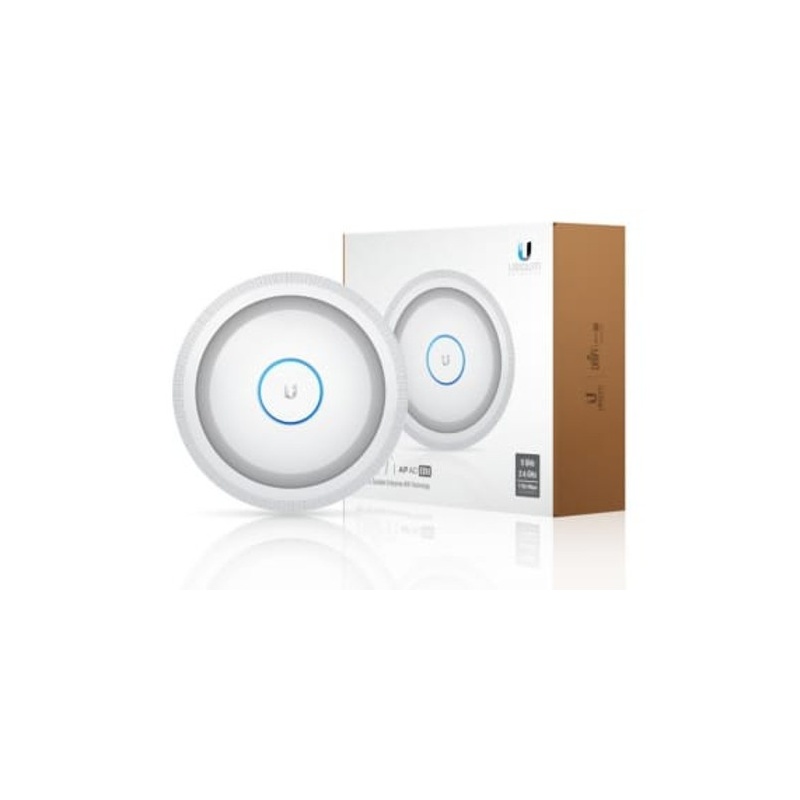

Box contents:

UniFi(UAP AC EDU) AP
Mounting bracket
PSU with integral Passive PoE injector
C5 cloverleaf mains cable (a UK power lead will be provided free of Charge)
Features:

2.4Ghz and 5Ghz Band
450 Mbps on 2.4 Ghz
1300 Mbps on 5 Ghz
Range up to 400 ft
WiFi-Standards 802.11 a/b/g/n/ac

Specifications:

Dimensions 287.5 x 287.5 x 125.9 mm
Weight 1.8kg
Networking Interface (1) 10/100/1000 Ethernet Ports
Buttons: Reset
Wi-Fi Standards 802.11 a/b/g/n/ac
Power Method Passive Power over Ethernet (48V)
Power Supply 48V, A PoE Gigabit Adapter Included
Max. Power Consumption 20 W
BSSID Up to Four per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
Certifications CE, FCC, IC

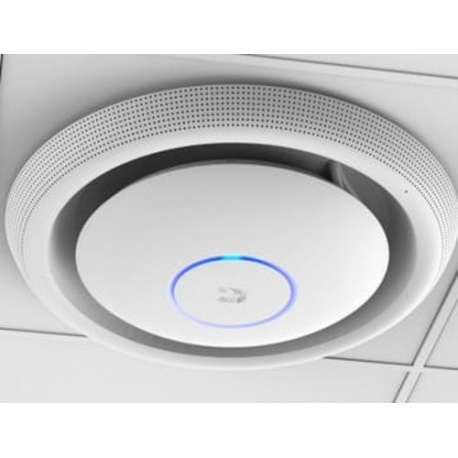

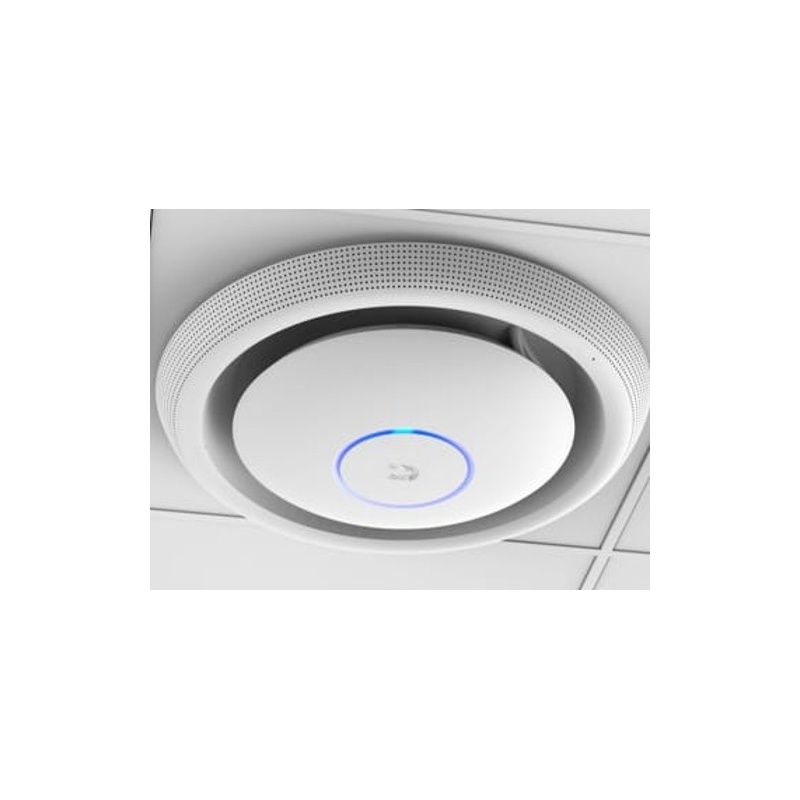

Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70C
Operating Humidity 5 - 95% Condensing
Antennas:
2.4 GHz 3dBI Integrated
5 GHz 3dBI Integrated
Max. TX Power: 2.4 GHz 22 dBm, 5 GHz 22 dBm
Advanced Traffic Management:
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n, 2.4 GHz (2x2) 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11n, 5 GHz (2x2) 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac, 5 GHz (2x2) 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

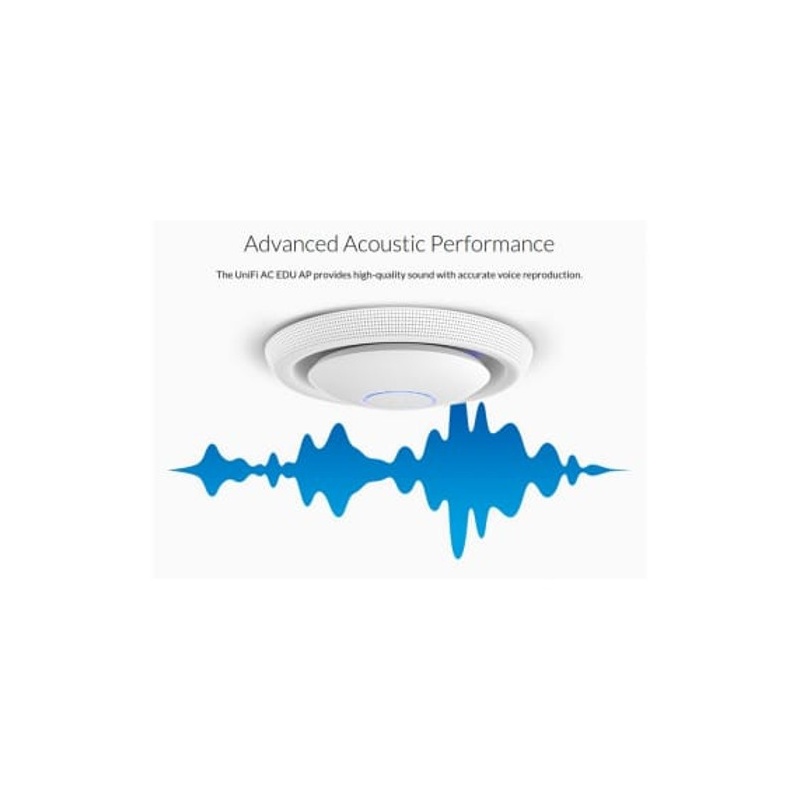

Loudspeaker Acoustics

Sensitivity - 94dB (1W/1m)
Maximum SPL - 103dB @ 1m
Frequency Response - 100-20,000 Hz
Type - Two-way speaker with second order HP filter
Microphone Acoustics

Sensitivity - -40dB
Polar Pattern - Omni
Frequency Response - 50-20,000 Hz

Write a review

Ubiquiti Unifi UAP AC EDU 1300 Mbps AP/Hotspot/PA

Ubiquiti Unifi UAP AC EDU 1300 Mbps AP/Hotspot/PA

The Ubiquiti UniFi UAP AC EDU Access Point is Ubiquiti's latest UAP which bring dual band connectivity at that low Ubiquiti price.
