DESCRIPTION

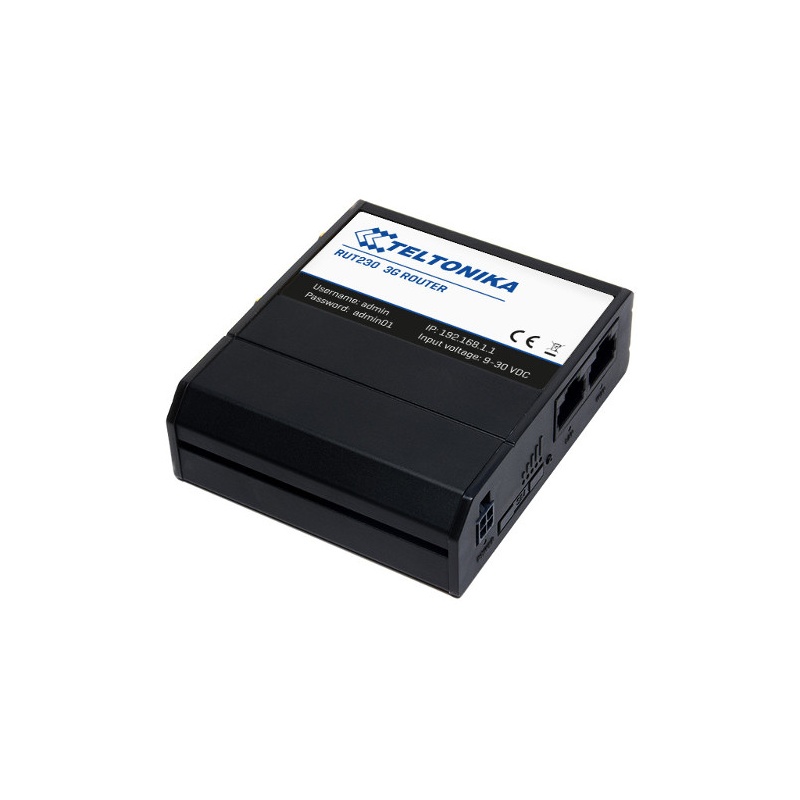

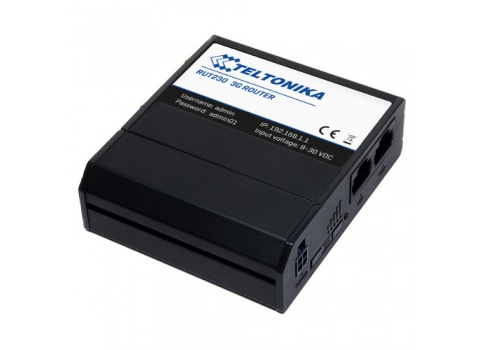

Teltonika RUT230
HSPA+ wireless router
RUT230 is compact HSPA+ 3G router with high speed wireless and Ethernet connections Internal HSPA+ modem can reach download rate of up to 14.4 Mbps. Router support latest IEEE802.11n and IEEE802.11b/g WLAN standards and provide wireless receiving and transmitting rate up to 150 Mbps.
3G support
Perfect M2M router for industrial solutions. It’s cost-effectiveness really shines through in situations where a huge mobile data throughput is not needed. Router’s 3G module provides enough speed to satisfy both M2M data and some regular internet usage demands.
3g-bst
wifi-bst
Wireless network
With built-in WiFi connectivity you can free yourself from cumbersome Ethernet-based on-site maintenance or simply save some smartphone SIM data for online check-ups and work e-mail attachment downloads.
Input and Output
With configurable inputs you can monitor external events, be it water level threshold crossing or a simple door sensor. Receive alerts remotely either via SMS or e-mail.
io-bst
external-sim-slot-bst
External SIM slot
External SIM slot let’s you insert or change SIM card with relative ease, and the device will connect to the network right away without any need of reboot.
2x Ethernet ports
Small and compact device for tight and compact spaces with limited amount of external devices. If one of the ports remains free, it can be used as either main internet connection or a backup connection.
2x-ethernet-bst
rms-bst
RMS support
Manage your routers fleet remotely. With full support of centralized Teltonika Remote Management System you will be able to access, control and monitor all of your routers within a single platform. This will help you make better decisions for future installments and best-use practices. Try RMS for free by clicking this link and registering your free demo account!
UMTS/HSPA+:
900/2100 MHz
HSDPA mode: 14.5 Mbps (Cat 10) downlink speed
HSUPA mode: 5.76 Mbps (Cat 6) uplink speed
UMTS mode: 384 kbps DL, 384 kbps UL
Power Class 3 (24dBm +1/-3dB) for UMTS bands
GSM/GPRS/EDGE:
850/900/1800/1900 Mhz
GPRS/EDGE Multi-slot Class 12
Power Class E2 (27dBm ±3dB) for EDGE 850/900
Power Class E2 (26dBm ±3/-4dB) for EDGE 1800/1900
Power Class 4 (33dBm ±2dB) for GSM 850/900
Power Class 1 (30dBm ±2dB) for GSM 1800/1900
ETHERNET:
IEEE 802.3, IEEE 802.3u standards
1 x LAN 10/100Mbps Ethernet port
1 x WAN 10/100Mbps Ethernet port
Supports auto MDI/MDIX
WIFI:
IEEE 802.11b/g/n WiFi standards
AP and STA modes
64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
2.401-2.495GHz WiFi frequency range
20dBm max WiFi TX power
SSID stealth mode and access control based on MAC address
