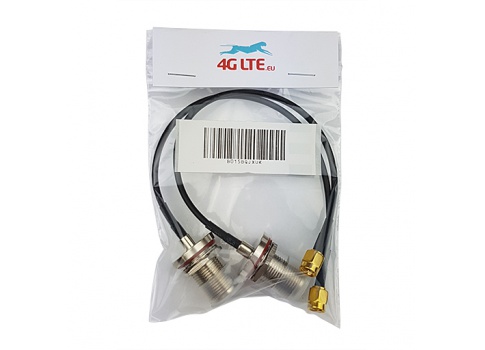

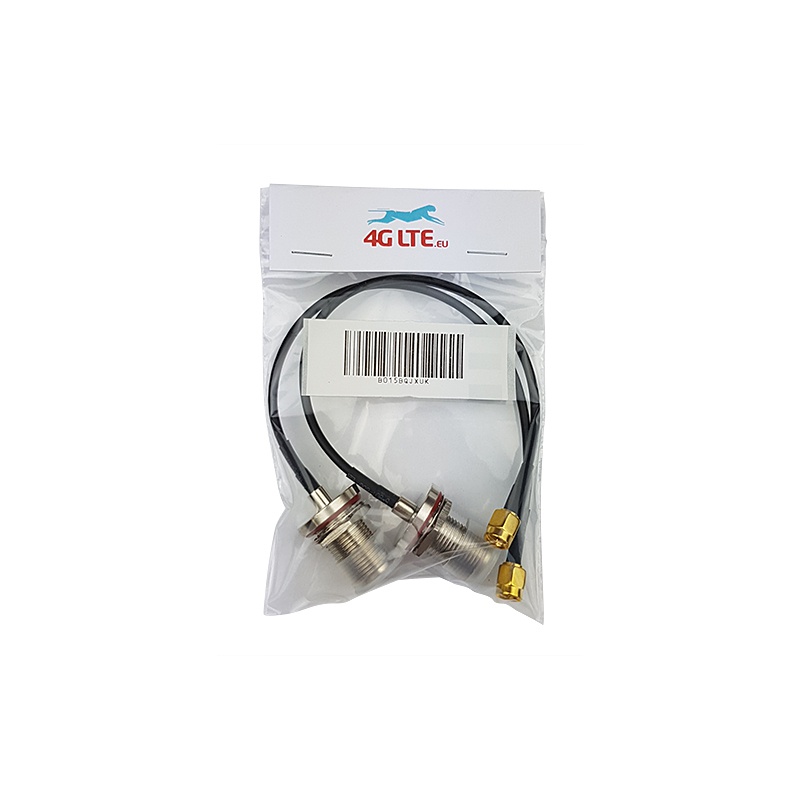

A pair of Cable Assembly N Bulkhead Female to SMA Male

Manufacturer: 4GLte.eu

Our price:£ 15.60/pcs. tax incl.

Code: N-B/H-F_SMA-Mx2

In stock: 0

Electrical Specifications
Model N B/H F-SMA M
Frequency RangE DC to 6GHz

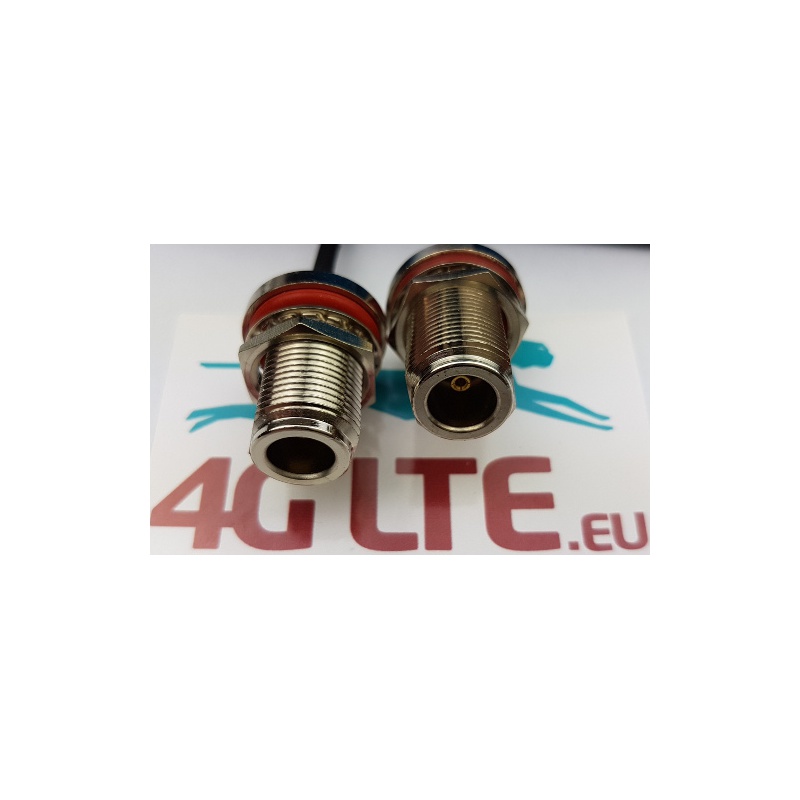

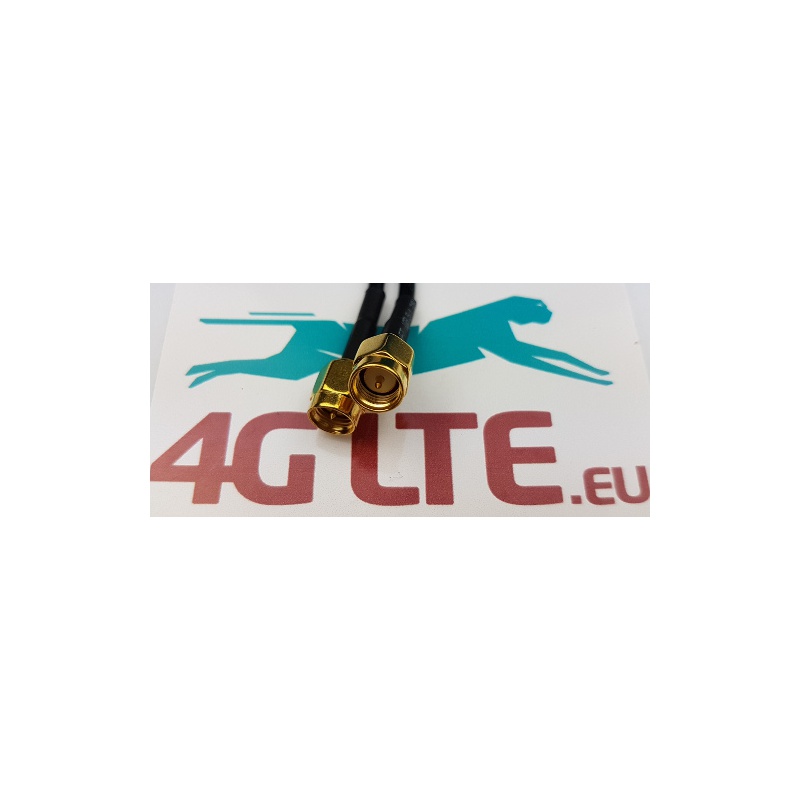

Connector N Bulkhead Female to SMA Male
Cable length 150mm
Impedance 50ohms
Temperature -40℃ to +85℃
Rated Voltage AC 60V
Contact Resistance 20m ohm max-signal and ground
Withstand Voltage AC 200V
Insulation Resistance 500M ohm minimum/DC 100V
VSWR <1.5:1

Escribe tu opinión

A pair of Cable Assembly N Bulkhead Female to SMA Male

A pair of Cable Assembly N Bulkhead Female to SMA Male

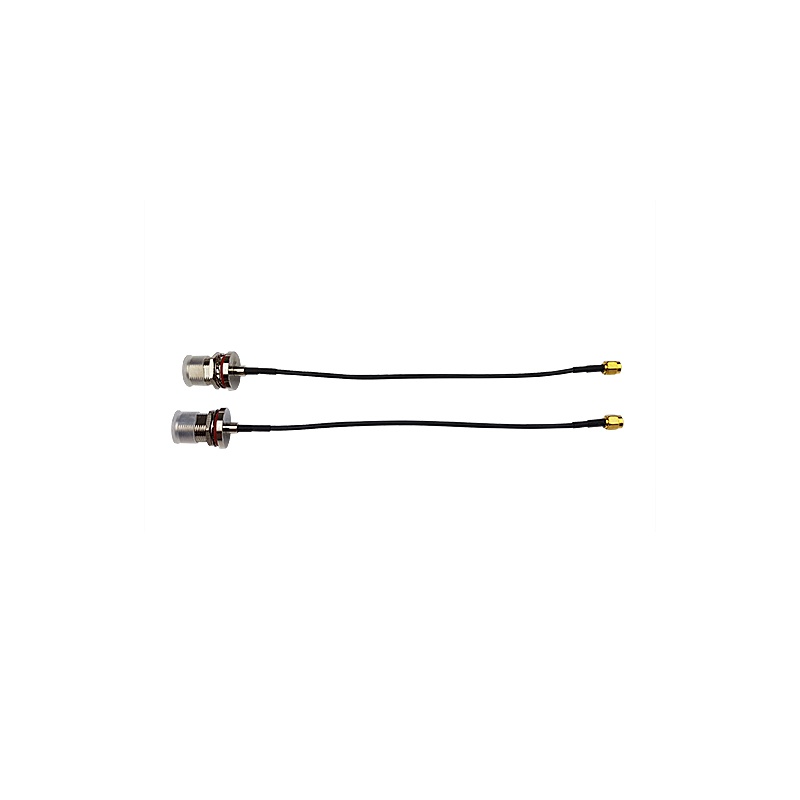

This is a pair of Cable Assembly N Bulkhead Female to SMA Male. Cable length 15cm.
